 Dated:  October 25, 2008
Weapons of the Italian Campaign
   This does not cover all of the weapons used by the troops.  Instead, this page points out some of the more unusual ones---weapons that are not usually considered but were quite common to the average soldier.
   These weapons are very common.  But this has proven the hardest page to research because very little is mentioned about these weapons in most history books.  So, I want to describe some of these weapons and then include quotes from the soldiers that they effected the most.

     Main Menu

Mines -  Teller, Shu, "Bouncing Betty".  Includes the US Mine Detector.
Smoke -  An offensive and a defensive tool used by the Allies.
Anti-Tank Ditches -  And general info on the German defense lines.
Artillery -   German Nebelwerfer rocket launcher, large cannons.

Mules -  Old technology necessary for mountain warfare.

PropagandaSamples of the Weapons of Pyschological warfare [TO BE ADDED]

Barrage Balloons - Used extensively in the amphibious landings in 1943.

Quotes- Related to the use and effectiveness of the above weapons.
Unless otherwise noted, the photos are from the US Army Series on the History of WW2 and the Pictorial Record, entitled "The War Against Germany and Italy: Mediterranean and Adjacent Areas". Other photos were taken at museums: US Airborne Museum at St. Mere Eglise and US Armed Forces Museum at Camp Shelby, MS.

US M1A1 Mine    Weight: 10.5 lbs

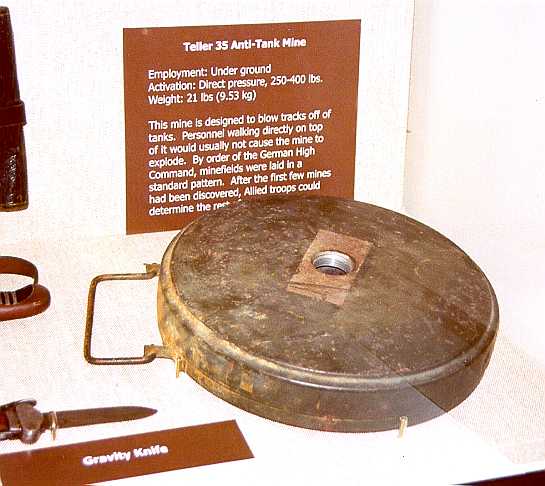

German Teller Anti-Tank Mine     "Teller" translates to "plate"
  The T-Mines or Teller mines were a family of anti-tank mines that had a large explosive charge designed to disable an enemy tank. The name came from their flat, plate shape. The first variant was the TMi-29 mine that appeared in the 1930's that were twice as powerful as any mine made up to then. It was 18" in diameter and carried 13.2 lbs of TNT. The TMi-35 was a smaller mine that saw service until 1943. The TMi-35 mine was 13" in diameter and weighed 21 lbs and was detonated by pressure placed on the lid that fired a central igniter. The TMi-43 mine was the last of this series to be introduced in WWII. It was similar to the Tmi-35 but it used Amatol explosives.
R-Mine         "Riegel" translates to "bar"
   The Germans also used "Bar Mines" or Riegelmines to provide anti-tank barriers. This mine proved to be the most effective anti-tank mine of the war.
S-Mine or "Bouncing Betty"
   The first "S" mine was the Schrapnellmine 35 (SMi-35). The SMi 35 was buried with just its igniters protruding above ground or connected to trip wires. When tripped, the SMi 35 ejected a small cylinder that scattered some 350 small steel balls over an area of 164 yards. The Allies dubbed these the "Bouncing Betty." The Stockmine operated on a similar principle to the SMi 35; however, the device was fixed on a wooded stake above ground. These are sometimes referred to as "stake mines". The body of the SMi 35 was comprised of a concrete cylinder that held the charge and the shrapnel. The shrapnel was scattered when the trip wire was moved.
Schu Mine
   The Schu Mine was a small wood box that measured wooded six-inch by six-inch that conatained a detonator and a solid charge. Another name or spelling for this mine is "Shoe Mine" or "Shoe Box " mine. The "Shoe Box" was a favorite among the Germans. One of the places the Americans first encountered the Schu mine was during the failed attempt to cross the Rappido River on 21 January 1944.
Glassmine 43
   In 1943, the Germans introduced another non-metallic mine, the Glassmine 43. This mine had a body made entirely of glass in order to reduce its delectability. Although, inevitably, part of the firing mechanism had to be metal, the mine was still difficult to detect.  It is not known if these were used in Italy.  See the color photo, below.
Artillery Shells
   The Germans also buried artillery shells that had a long detonator. This allowed the artillery shell to be buried beyond the range of the mine detector.  See quote below from Engineer.

See Quotes about the effect of mines, below, by clicking on Quotes.

Photo is from an exhibit at US Armed Forces Museum, Camp Shelby, MS.

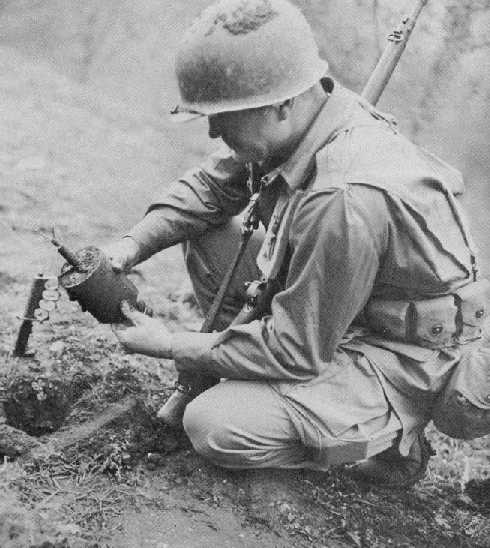

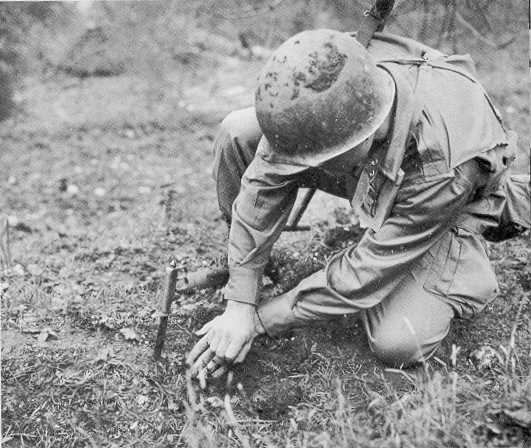

Digging up a Bouncing Betty

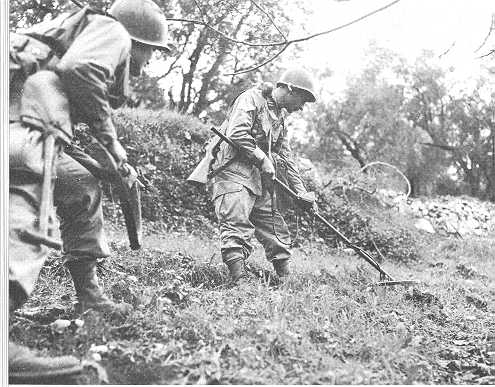

Members of 504th Parachute Infantry Regiment practising their mine-detecting skills.
See brief history of 504 PIR, below.

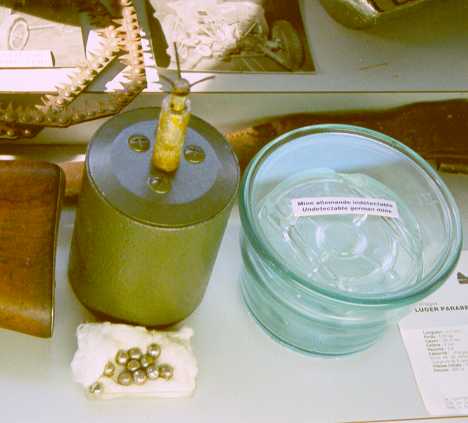

Photo of a "Bouncing Betty" with examples of the
steel balls.  On the right is a glass mine, possibly
the Glassmine 43.

 [Photo taken at the US Airborne Museum at St. Mere Eglise, Normandy, France.]

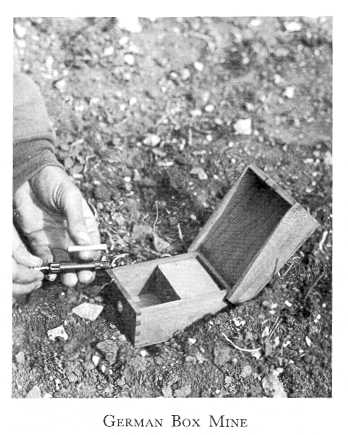

Schu Mine
Defusing a Schu Mine
  Any object that would be a soldier would be tempted to pick up and inspect could be rigged
with explosives.  The Germans knew that the Americans were curious and always on the search
for food, war souvenirs and any little nick-nack.

Pencil Booby-Trap.
The following description of a booby-trap was reported by 85th Division Intelligence report.  In this case, the explosive was found by an inquisitive Italian child.
A booby rap, description as below, caused a civilian casualty in Arezzo on 14 Aug 44, when a chiled of 9 lost three fingers on removing the cap of the tube.
(Sketch drawn full scale measured 5 inches in length and 5/8 inch round)
Description:  The trap is made up of light metal, probably aluminum, tube and hexagonal cap with milled edge.   The name, directions for use, etc. are in  white lettering on a black ground  in an  elliptical panel surrounded by scroll design in white on a black ground.  There is a purple 2/5" wide round the closed end of the tube.
  Wording on the panel is as follows:
Hair Pencil

Scientifically covers white and gray hair
 at the roots, temples and har parting.

To Apply - moiston tip.
At your local store or post paid $1.00
Mfg'd by E.F. LECHLER
569 West 181st Street New York, N.Y. U.S.A.

(I'm not sure how all that info was printed on this small pencil.  Maybe it was on the container.)

US Mine Detector
  The mine detector used by the US Army was the SCR-625 Mine Detector. It weighed 7.5 lbs and could detect mines buried 6 to 12 inches below the surface. The operator swept it from side to side in front of him and would sweep a path 3 to 4 feet wide. This detector had two faults: it was not waterproof and was very fragile.
  The mine detector proved to be inadequate for the Italian Campaign, although it was continued in service. The Italian soil had large amounts of iron ore that made it ineffective. Also, the Germans began to use non-metallic mines such as the Schu mine. In 1944, the SCR-625 was upgraded to the SCR-625(H) Short-Armed Detector Set that weighed only 3.5 lbs. It had a shortened handle to allow it to be used in a prone position.
  Once a mine was detected, the operator would point to the location and an assistant would mark the spot. During patrols or assaults on a position, the engineers would sweep a path for the infantry and mark it with white tape(similar to crime scene tape). The bayonet was the most effective tool for probing for non-metallic mines or for removing mines.

SCR-625 Mine Detector
History of 504 PIR in Italy

  The 504th Parachute Infantry Regiment intended to join rest of 82nd Airborne Division in Ireland for training to prepare for the Normandy invasions.  Instead they were sent to Anzio upon special request of Prime Minister Churchill.
    They formed the 504 Parachute Combat Team that included the 376 Parachute Artillery Btn and 307 Parachute Engr, Company C.  They entered the line at Mussolini's Canal and suffered heavy casualties.

The US paratroopers got the name "devils in baggy pants" from a German diary found at  Anzio.

Above photos are obviously posed photos taken of the 504 PIR in Italy

 Mines Cleared  -  Another Intelligence Report from 85th Division reported an infantry unit that located a field marked with signs that read "Mines Cleared".  The wording did not seem official Army verbage, so the field was searched.  They found Schu mines and Italian box mines planted over the field.   An obvious trick by the Germans.

Return to Main Menu

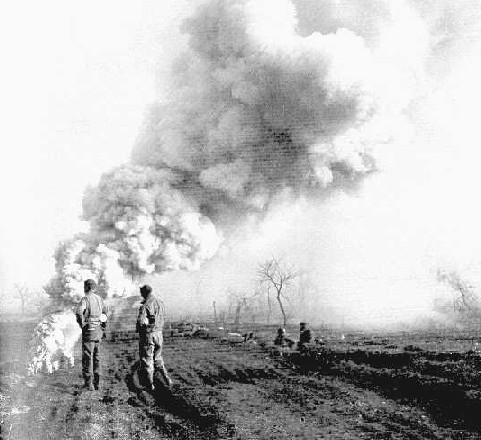

Smoke Generators - and Smudge Pots
   Smoke generators were used extensively in the early days of the Italian Campaign. As the Allies were moving on the offense against a German enemy that occupied the high grounds, concealment was an important factor. Both at Anzio and Cassino fronts, the Allies had to move troops and equipment under the ever-watchful eyes of the German artillery spotter. Smoke was a sure way to blind the enemy and allow movement up close to the front lines as possible.

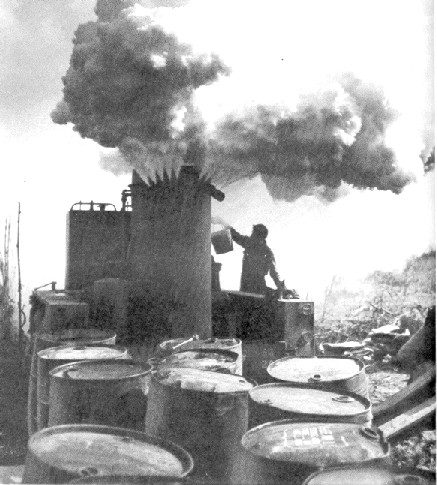

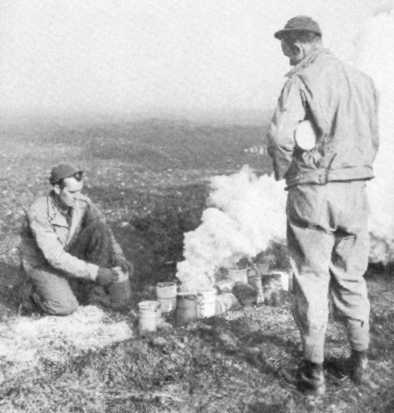

     M1 Smoke Generator

   This device burned about two 55-gallon drums of oil per hour to produce smoke to cover the Allied positions.

Photos from the US Army History series.

Anti-Tank Ditches & German defense positions

The German defenses were built by the Todt Organization.  TheTodt Organization was an off-shoot of the military labor organization, the Reichsarbeitdienst (RAD), that used labor from civilians drafted into service and civilian engineers.  Later, it used forced labor from countries occupied by the Germans and was used in the front line service of the army.

The following describes the preparations in front of the German X Army at the GOTHIC Line located in the Apennine Mountains in 1944.

"All in all, even though limitations of time had prevented full implementation of the Fuhrer's order of early June, the work accomplished by the end of August represented no mean achievement.  A report submitted to Kesselring on 3 September revealed the state of completion of the defenses in the Tenth Army's sector on 28 August. Most impressive were the figures for the minor types of installations  - 2,375 machine-gun posts, 479 anti-tank gun, mortar and assault-gun positions, 3,604 dug-outs and shelters of various kinds (including 27 caves), 16,006 riflemen's positions (of trees and branches), 72,517 "T" (Teller, anti-tank) mines and 23,172 "S" mines laid, 117,370 meters of wire obstacles, and 8,944 meters of anti-tank ditch. Only four Panther turrets however had been completed (with 18 still under construction and seven more projected), 18 out of an intended 46 smaller tank gun turrets (for 1-cm and 2-cm. guns) were ready, and of 22 Organization Todt steel shelters being constructed, not not one was finished."
                       From "The Canadians In Italy, 1943-1945" -  by Lt.-Col. G.W. Nicholson.

Propagander   -  To be added later.
Return to Main Menu

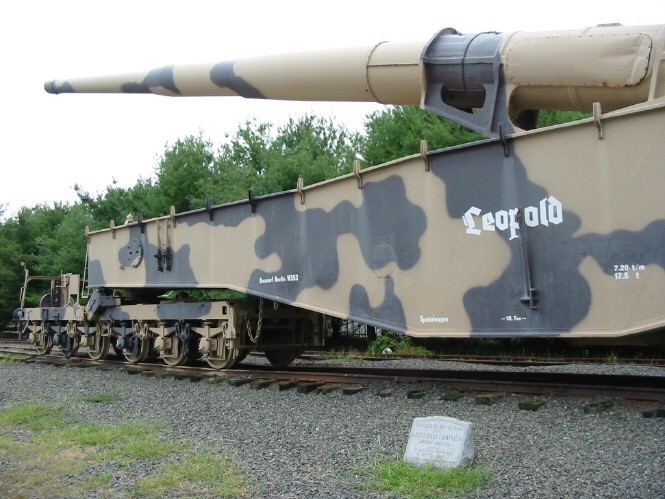

"Anzio Annie" -  280mm railroad gun
Railroad cannon known as "Anzio Annie" by the Americans and "Leopold" by the Germans. (see Fate, below)
Caliber:  280mm (11.02 inches)
Barrel Length:  70.08 ft                  Overall Length:   135.28 ft
Shell:   563 lb High Explosive         Muzzle Veolcity:   3,700 fps
Max Range:   38 miles
"Anzio Annie" is on display at the Aberdeen Proving Grounds Museum, Aberdeen, Maryland.
Anzio Annie
Anzio Annie

The fate of the Anzio Annie.
The two guns that made up the German K-5 RR battery in Italy were called "Robert" and "Leopold".  When the Allies broke out of the Anzio Beachhead, the guns were moved to Civitavecchia, located just north of Rome. There "Robert" and "Leopold" were spiked with explosives and blown in place.  On June 7, 1944, the 168th Infantry Regiment of the 34th Division captured the guns.  "Leopold" was the less damaged piece and was moved to Naples and embarked aboard the liberty ship Robert R. Livingston and shipped to Aberdeen Proving Grounds, Maryland.  The fate of "Robert" is unknown but supposedly it was scrapped in Italy after the war.  In February of 1946, two more K-5 RR guns were brought to the US from Germany.  Parts off those two guns were used to make "Leopold" operational so the gun could be tested at Aberdeen.

US 155mm    - "Long Tom"

155mm Cannon

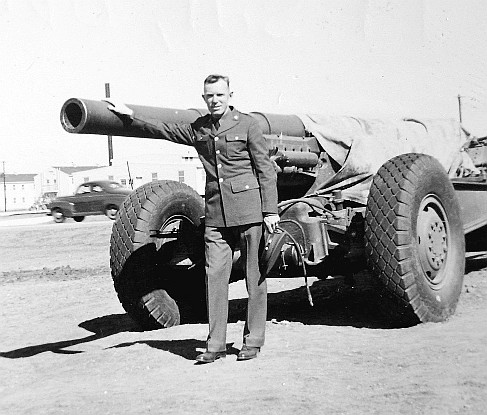

Cadet Officer Bill Dempsey at Fort Sill, OK in 1942, standing next to a 155mm cannon.
This gun does not exactly look like the ones that were used in service.  It could be an
early prototype model.
Fort Sill was the primary school for artillery officers.

Nebelwerfer Rocket Launcher
Nebelwerfer 41 - 15cm Rocket Launcher   - "Screaming Meamies"
                                                                                                      Photo from the US Army History series.

The Nebelwerfer 41 was a six-barrel rocket launcher on a mobile carriage.  "Nebelwerfer" translates as 'smoke thrower', as this was the original purpose of this weapon.  However, a high explosive version of the rocket was quickly developed.   The rockets are launched one at a time and may launch a single rocket or a salvo of all six rockets one after another. The sound of the large 15cm rockets firing was quite dreadful and earned it the name "Screaming Meamies" or "Moaning Minnies".  The rocket had the motor in the front section, exhausting through a ring of vents halfway down the body and the warhead in the sail section.  This gave the projectile good accuracy and resulted in the warhead bursting above ground.
Additional Info:  A self-propelled version with 10 launching tubes was developed as the Panzerwerfer 42, mounted on halftracks.  The Panzerwerfer 42 fired a 70-lb rocket armed with a 2.5 kg warhead to a range of 7060 meters.  These mobile units were known to have been used in Normandy; not sure if they were used in Italy.


Return to Main Menu


Mules were an essential mode of transportation in Italy due to the mountainous terrain, the lack of adequate roads, and the mud that was everwhere during the fall rainy season.  As the war progressed, the Germans depended more and more upon horses and mules for transporting their support units.  The Allies used mule trains to move ammo and food up to the troops in the mountains.  The ex-military Italians were used to lead these trains as they knew the area and were accustomed to the terrain.

A mule train loaded and ready to traverse the steep trails near Castelforte.  This photo
provides a glimpse as to the size of a mule train.

"Muleskinners" loading supplies onto mules for the treacherous trip
up the mountain paths.            PHOTO FROM US ARMY HISTORY SERIES

"The entire mule train was destroyed. The Italian mule skinners are
 hysterical and make no effort to collect any stray animals. They cry
 and shout and run off weeping in all directions. To treat them is
 impossible.  None of them will hold still long enough to be bandaged.
 They scramble off the mountain, leaving a trail of blood behind them."
               Captain Klaus Huebner, a Medical doctor with the 88th Division,
               describes the result of an artillery strike; "Long Walk Through War".

Return to Main Menu

Barrage Balloons

Barrage Balloons were a small balloon that was tethered to the ground or a ship in order to provide an obstacle to discourage low-level attacks by enemy aircraft. These were used extensively in the early years of the war and especially on invasion fleets, as at Normandy and Anzio.

Did they work?  Here is a description from General Mark Clark.

    When the Germans were driven beyond Civitavecchia, I had Jack Walker pilot me there on June 9 {1944} in a new L-5, which was a little larger and a little faster than the type of Piper Cub we had been using. I wanted to survey the port from the air to determine how much it had been damaged by the Germans before their withdrawal. It looked pretty bad as we came over the port, so I told Jack to start circling and just keep on circuling until I told him to stop.
   As a result of this order, not only was I looking down at the water, but Jack was looking down too, and neither of us saw an American barrage balloon that had just been run up as protection against a German air attack. There was a sudden grinding crash and the wing of our plane hit the barrage balloon cable, which extended down to a truck at the edge of the harbor. The cable slid along the wing and caught on the air-speed indicator {pitot tube} at its end. By the time I realized what had happened, gas was leaking from the wing tank and we were swinging wildly in a circle. My first thought was to bail out, but I remembered I had no parachute.
   Jack pulled the throttle wide open as we swung in a kind of spiral, and we went around the cable in a merry-go-round fashion several times, spinning toward the water. Then, happily, the cable broke while Jack could still straighten out the plan into a glide. Gas was all over the place by then, so he shut off the engine and drifted toward land. Neither of us ever figured out just how we escaped that time, and the men handling the balloon later said that it had seemed impossible that Jack ever could pull the plane out of it. In addition there was a bomb attached to the balloon that was supposed to slide down the cable and explode when anything struck the cable. The only reason we could imagine that it had not was because we were going at a very slow speed in a light airplane.
   Jack picked out airfield not far from the water and set down the plane on it as tenderly as possible, When we crawled out, both of us were still shaking. "Sir, you have just witnessed a miracle, " Jack said, and it wasn't exactly a joke. "I really thought it was all over".

                                                        Quoted from "Calculed Risk" by Mark W. Clark, Harper & Brothers Publisher,1950.

Return to Main Menu

Quotes about Mines

  "On 5 September, in the vicinity of Signano, Italy, at two fording sites across the Arno, the company removed 97 Tellermines and 12 "S" mines from two large minefields which extended into water 2-1/2 to 3 feet deep and which necessitated probing with bayonets and using mine-detectors in waist-deep water. Some of the Tellermines were booby-trapped with 3 kilograms of explosives to make removal more difficult and dangerous. After the crossing was made, scores of schu-mines and booby-traps were removed on the north slope of the Arno River. "

   "The road from Massa to Canevara had been made impassable by a 30-yard long crater dug by the retreating Germans on the outskirts of Massa. It was also mined with anti-tank, anti-personnel, and artillery shells converted into mines with pressure devices that were buried too deep for detection by electrical mine detectors or probing. "

   "Between 5 April and 23 April{1945}, the Engineers removed over 20 Tellermines, 4 stock mines, 23 R-mines, 57 schu-mines, 47 M2A1 anti-personnel American mines, 5 Italian box mines, 20 12-in artillery shells improvised as anti-tank mines, 1 plastic mine, over 100 pounds of cratering charges; demolished 15 mortar duds and 1 rocket bomb; . . . ."
                                                    Quote from T/5 George Goto of the 232nd Engr., 442nd RCT.

A description of the Gothic Line along the German Tenth Army front.

    "All in all, even though limitations of time had prevented full implementation of the Fuhrer's order of early June, the work accomplished by the end of August represented no mean achievement.  A report submitted to Kesselring on 3 September revealed the state of completion of the defenses in the Tenth Army's sector on 28 August. Most impressive were the figures for the minor types of installations  -  2,375 machine-gun posts, 479 anti-tank gun, mortar and assault-gun positions, 3,604 dug-outs and shelters of various kinds (including 27 caves), 16,006 riflemen's positions (of trees and branches), 72,517 "T" (Teller, anti-tank) mines and 23,172 "S" mines laid, 117,370 meters of wire obstacles, and 8,944 meters of anti-tank ditch. Only four Panther turrets however had been completed (with 18 still under construction and seven more projected), 18 out of an intended 46 smaller tank gun turrets (for 1-cm and 2-cm. guns) were ready, and of 22 Organization Todt steel shelters being constructed, not not one was finished."
                                  From "The Canadians In Italy, 1943-1945" -  by Lt.-Col. G.W. Nicholson.

   "Booby-trapped houses frequently cause casualties. The Germans apparently know that GI Joe is very curious and inspects everything. Forsaken trunks, closets, or attics are their favorites. Never open a previously unopened door or pry open an old trunk, closet, or door."
                                           Quoted from Captain Klaus Huebner in "A Long Walk Through War"

A description of the anti-tank ditch at the Casear Line from History of 91st 'Powder River' Division.

   This was the Gothic Line. It was built by the Organisation Todt over 12 months. It included pillboxes, concrete emplacements, som so thick that a 105mm shell bounced off them, barbed wire, tank guns mounted in concrete turrents, minefields, elaborate antitank ditches, and precipitous mountain terrain.

   Descent of the precipitous northern slope of Mt. Calvi, breaching the barbed-wire entanglements and numerous minefields ahead and getting through an area completely zeroed in by enemy mortar, artillery, machine-gun and snipe fire called for the combined qualities of a mountain goat and Superman.

   Monticelli is a rocky, cone-shaped peak, 3,000 feet high, wooded 3/4 of the way up, but devoid of any cover or concealment in the last 600 feet before the summit. On its sides pillboxes and dugouts were built in such a way as to afford protection for each other. They were camouflaged so carefully that they were invisible to the naked eye. One typical pillbox, large enough to accommodate five men, was constructed of concrete with a roof covered with 3 feet of logs and dirt. In front was a firing slit 6 inches high and 3 feet long. Row after row of barbed wire, one foot high and 25 feet wide were placed at 100-yard intervals to the top of the mountain. In two ravines which led to the top of the mountain, the enemy had laid small minefields. On the reverse slope of the peak elaborate dugouts were constructed. They were dug straight back into the mountain to a distance of 75 feet and were large enough to hold up to 20 men. On a hill 300 yards north of Monticelli was found a huge dugout blasted out of solid rock. Shaped like a U and equipped with cooking and sleeping quarters, it was large enough to accommodate 50 men.

Quote from Captain Klaus Huebner, medical officer with 351st Regiment, 88 Division:
   "Bracing my hands to get up, I almost set off a mine buried directly in front of me. In my stupidity and gripped with panic, I have jumped into a mine field! I must get back on the highway. I muster all the strength I have left and, sidestepping dangerously exposed mines like a football player does would-be tacklers, leap back onto the road. … The irony of it all is that while I was gone, my guide arrived. The poor fellow is shell-shocked, shakes all over, sobs, and is in a severe state of anxiety. To get back to us he had dodged mortars and air bursts and had stepped on a dud mine--its cap fluttering two feet into the air but the mine not going off. He is incoherent at the moment."

   "Frequently the narrow road crosses and re-crosses the creek over small wooden bridges. These are usually demolished and we cross on the debris strewn around them. I witness the entire battalion crosss over one such obstacle, except for the last man, who is unfortunate enough to have his foot blown off by a shoe{Schu} mine. How 450 men have crossed over the same path and avoided stepping on that mine is almost unbelievable!"

    "Another axiom in seizing an objective seems to be this: never take the easiest and hence obvious route such as a main highway or a secondary road. The Germans expect you to come this way, and therefore such routes are heavily mined and defended. The route to take instead is the most illogical one to the enemy and the most difficult one for us. This means mountain climbing, and that is after all what we practiced for months."

    "The next hazard is the crossing of the 2-mile-wide meadow at the foot of Mount La Fine. I am positive that the meadow is heavily mined and zeroed in. At 10-yard intervals the men of my battalion leave the oak forest and commence their treacherous walk across the flat, open plain. I feel as though I am embarking on my death march as I follow the troops across the meadow. Will I survive the assault on La Fine? I am scared to death yet can't afford to show it. The chaplain and I walk together. It is definitely comforting to have him at my side. I know he is a better Christian than I am. God will surely spare him, and if He does I, walking with him, will probably be spared also. I have suddenly become a superstitious foxhole Christian."
                                                    Quote from Captain Klaus Huebner, medical officer with 351st Regiment,
88th Division in his book "Long Walk Through War".

 Mines were hazardous to both privates and generals.

  "Maj.-General H. K. Kippenberger, a New Zealander, stepped on a mine near Cassino which blew off one leg.  Looking around, he realized that he was in the middle of a mine field.  Nevertheless, he stood up on one leg and began hopping out.  He hopped on another mine and went down in a blast of explosives that was only slightly less noisy than the voice in which he roared, "Dammit!  There goes the other leg."    (General Kippenberger had to walk on two artificial legs.)

                                         Quote from General Mark Clark's book "Calculated Risk", page 264.
